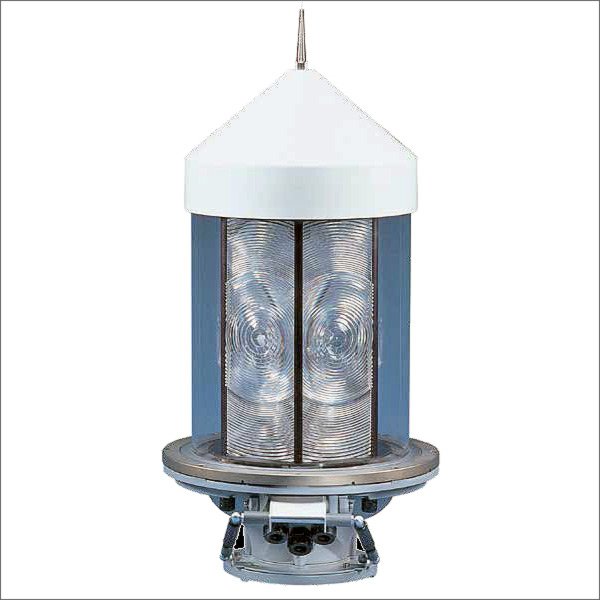

TRB – 220 beacon
TRB – 220 beacon
| SPECIFICATIONS | |
|---|---|
| Power Consumption | |
| Lamp version | As specified (from 3 to 110W) |
| LED version | Up to 30W |
| Motor | Average 2.5W |
| Power Input | |
| DC Version | 9 – 36VDC |
| AC Version (requires additional equipment) | 110 – 240VAC, 50/60Hz |
| Light Source | Tideland TF-3B OMNIBUS® II, high temperature |
| 3 or 6 place lampchanger, MaxiHALO-60RB (LED) or MLED-Retro | |
| Drive System | Brushless DC motor; gearless direct drive |
| Optics | |
| Acrylic Moulded Flash Panel | 110mm focal length, Catadioptric Fresnel Lens |
| Glazing | 330mm UV-resistant acrylic |
| Lens Configuration | |
| Standard | 220mm Hexagonal |
| Ventilation | Not required (up to 110W bulb) |
| Rotation Periods | 16 rotation periods, field selectable |
| Standard Periods | 120, 90, 72, 60, 48, 40, 30, 24, 20, 15, 12, 10, 9, 8, 7 and 6 seconds |
| Environmental | |
| Temperature | -40° C to +55° C |
| Humidity | 100% non-condensing |
| Physical Size | |
| Height | 851mm (33.5in) with spike |
| Weight | 20.5kg (45lb) |
| IP Rating | IP65 |
| NOTE: Specifications are subject to change. | |
TRB-220 is a high intensity rotating beacon capable of providing simple and complex flash characters. This beacon can be configured to provide high efficiency in effective intensities using a wide range of low wattage marine signal lamps as well as LED light source.
Tideland Signal’s TRB-220 MaxLumina® is excellent in battery operations where a proper charge level can be maintained through photovoltaic charging from solar panels.
A 6-lens carousel, light source, gearless direct drive motor and electronic control module are contained in a watertight aluminium and fiberglass housing (IP65) with acrylic glazing and stainless steel fasteners.
Mounted on a light tower of proper height, TRB-220 gives coastal shipping up to a 20NM range light (@ T = 0.74).
FEATURES
• 6-lens carousel, consisting of a flash panel design with catadioptric prisms
• Operates with up to a 110W lamp without need for ventilation or cooling fans
• Brushless DC direct drive motor designed for smooth operation at low RPM
• Over 16 preprogrammed rotation periods, ranging from a period of 6 to 120 seconds
• 25 years of useful life
• Available in all IALA colours
• No scheduled maintenance for life of motor
• Accommodates Tideland’s TF-3B MicroPower OMNIBUS® II 6-place lampchanger, MaxiHALO-60RB (LED) or MLED-Retro
• Automatic switchover to standby lantern
• Full monitor and control access
