MaxiHALO-60 II marine signal lanterns
MaxiHALO-60 II marine signal lanterns
| SPECIFICATIONS | |
|---|---|
| Input Voltage | 9 to 36VDC |
| Power Consumption | Variable up to 7 watts or 19 watts for EFF version |
| Power Setting | Field selectable |
| Colours Available | Red, green, yellow, white, blue |
| Operating Temperature | -40° C to +70° C |
| Storage Temperature | -40° C to +70° C |
| Vertical Beam Divergence | Variable – see marine lantern product bulletins |
| Quiescent Current | < 5mA |
| Flash Codes | Up to 256 codes, field selectable or via communication links |
| Synchronisation | GPS or hard wire options |
| Monitor and Control | Capable |
| Visibility | 360° horizon (omnidirectional) |
| Sunswitch Threshold | Variable |
| NOTE: Specifications are subject to change. | |

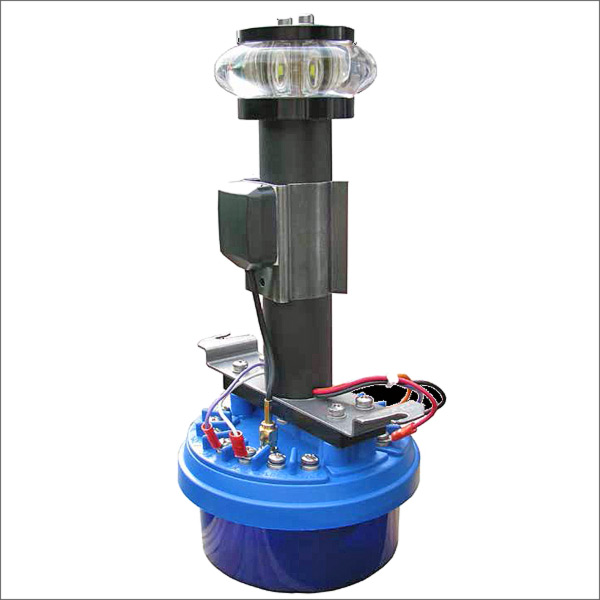

Tideland Signal’s New MaxiHalo-60 II LED flasher assembly allows for an easy upgrade to LED technology without having to replace existing lanterns.
MaxiHALO-60 provides a fully focused light in most Tideland marine signal lanterns and is compatible with most commercially available lanterns and rotating beacons.
MaxiHALO-60 II LED flasher, a Tideland Signal proprietary light source, projects a light in a 360° horizontal beam pattern.
FEATURES
• User selectable power settings for multiple visual range performance
• 256 user selectable flash characters
• Full monitor and control access
• SignalView program to set user options
• Available in all IALA approved colours
• A constant current power source provides maximum lifetime of LEDs
• Temperature compensated LED drive circuits ensure uniform brightness with ambient temperature change
• Provides high electro-optical efficiency
• Impervious to shock and vibration
• Sunswitch on-off set points
• Optional GPS synchronisation module
• Sealed Electronics
