BUOY SERIES MMB-22
BUOY SERIES MMB-22
IMPORTANT:
For models and characteristics please leaf through the side gallery.
To see complete datasheet, please click on specific image to enlarge
| LEGEND | Legend to identify the correct name of the buoy |
|---|---|

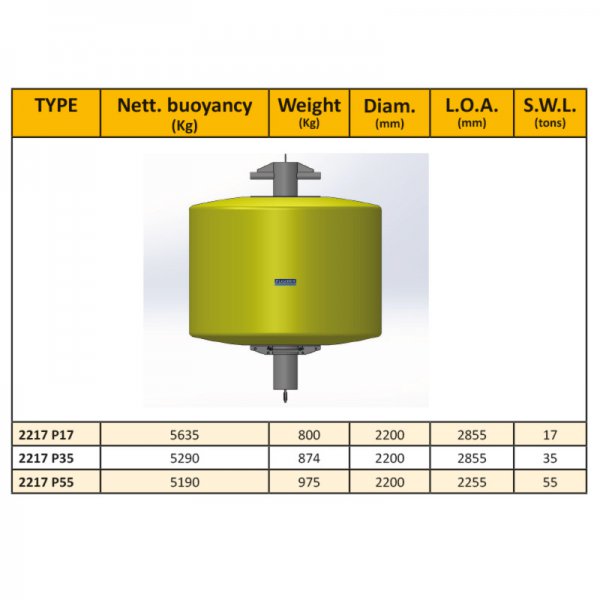

| P | Bollard in the upper side, pad eye in the lower side. |

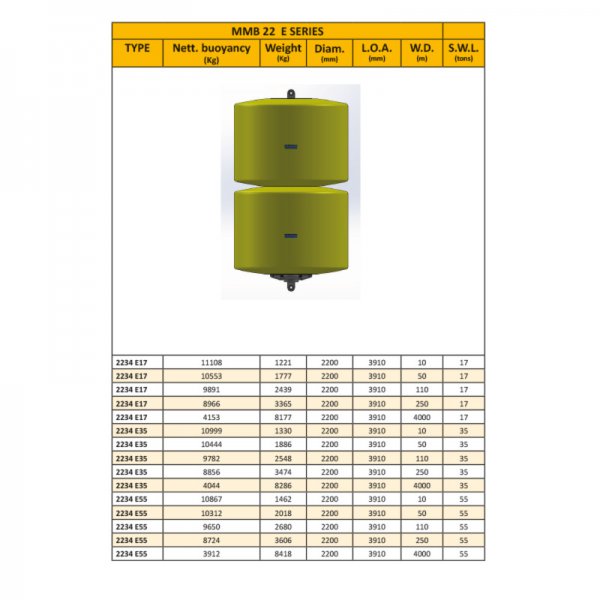

| E | Pad eyes at both sides |
| S | Swivel eyes at both sides “” |
FLOATEX produces a wide range of pick-up, small mooring, marker buoys.
Buoy TYPE MMB22 are utilised for many purpose in marine field, mooring or mid-line buoy.
Buoy series MMB22 could be equipped with pad-eye in both side of the buoy, or with bollard upper side and pad eye bottom side, SWL available are 17-35-55 tons and various operating water depth.
Other configuration or water depth are avalable on request.
