120 SEC MARINE LANTERN
120 SEC MARINE LANTERN
| TECHNICAL DATA | ||
|---|---|---|
| TYPE | 120SEC-1 | 120SEC-2 |
| COLOURS | Amber (Yellow) - Red - Green - White | |
| LAMP | Tier 6 LEDs | Tier 12 LEDs |
| BATTERY | 9000 mAh | |
| SOLAR MODULE | 1.03 W (7 V) | |
| FLASHER | FBL-016 | |
| MATERIALS | Lens: clear polycarbonate Base: nylon reinforced Fixing bolts: stainless steel |
|
| WEIGHT | 1.8 Kg | |
| RANGE NM | ||
|---|---|---|
| COLOUR | 120SEC-1 | 120SEC-2 |
| Y | 1.2 | 1.6 |
| G | 1.3 | 2.1 |
| R | 1.5 | 2.5 |
| W | 1.4 | 1.8 |
The 120SEC Marine Lantern system has been designed for applications where a complete small signalling system is required.
The system is formed by new lantern with 120 mm clear polycarbonate lens and reinforced nylon base, fixed together with locking screws.
The internal electrical light system is composed by a 6 light emitters diodes, simple flasher, sunswitch, battery and solar power module.
It has a small solar panel on the top of the lantern and has an internal battery.

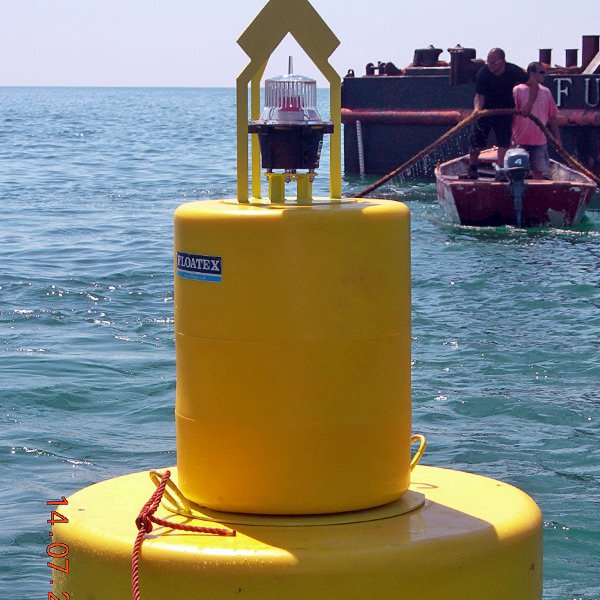

The 120SEC Marine Lantern signalling system can be applied on poles, docks or small buoys.
